If you learn our fast rundown about binary triggers, you may’ve determined you’re able to improve your AR for some actual enjoyable. We received our fingers on a Franklin Armory BFSIII AR-C1 unit. Let’s go over the right way to swap out your AR’s manufacturing unit, boring, single-stage set off for this magazine dumpin’ thumper! Before we get began putting in your Franklin Armory Binary Trigger, you’ll want just some primary instruments.
Franklin Armory Binary Trigger Install: The Tools

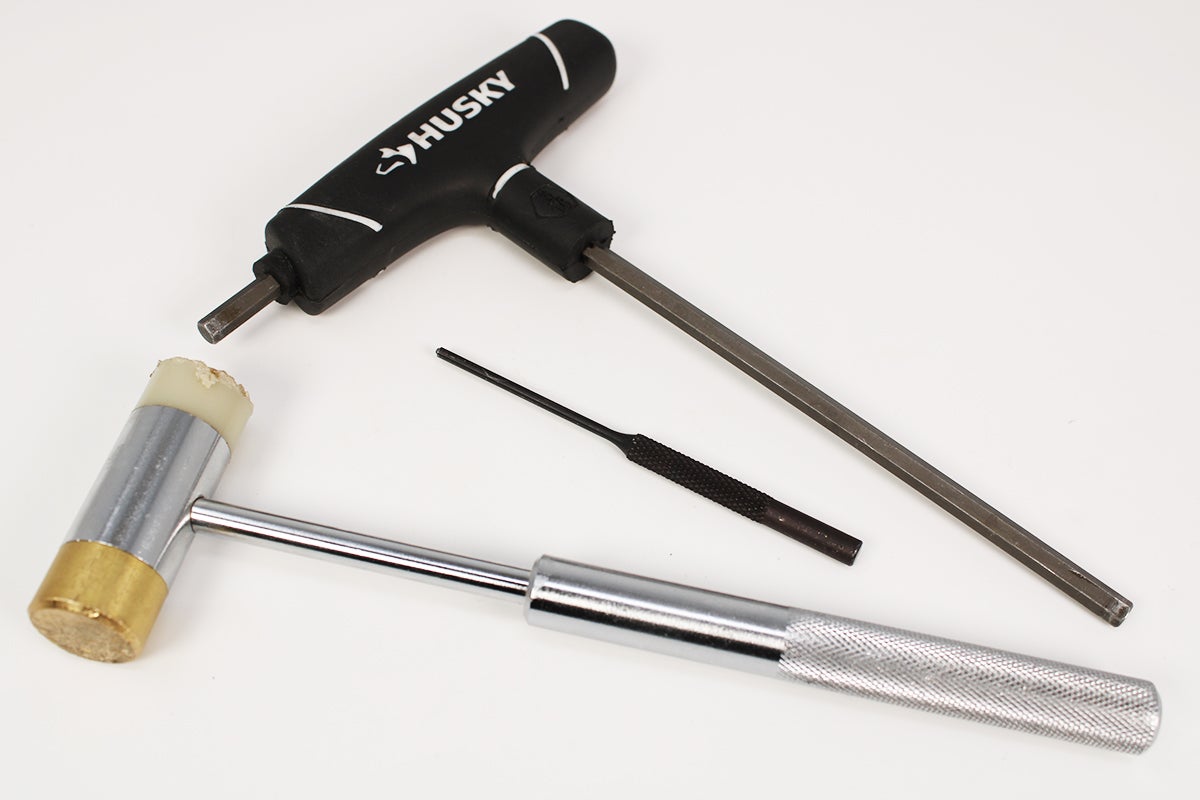

Grab a small gunsmithing hammer – ideally one thing with a polymer head, so that you don’t nick your receiver – and a 5/32″ punch. You’ll additionally want the suitable Allen key for eradicating your AR grip’s bolt and washer. Make certain you’re doing this in a well-lit place, so you may keep watch over a number of the small bits and is derived we’re working with.
How to Install The Franklin Armory Binary Trigger

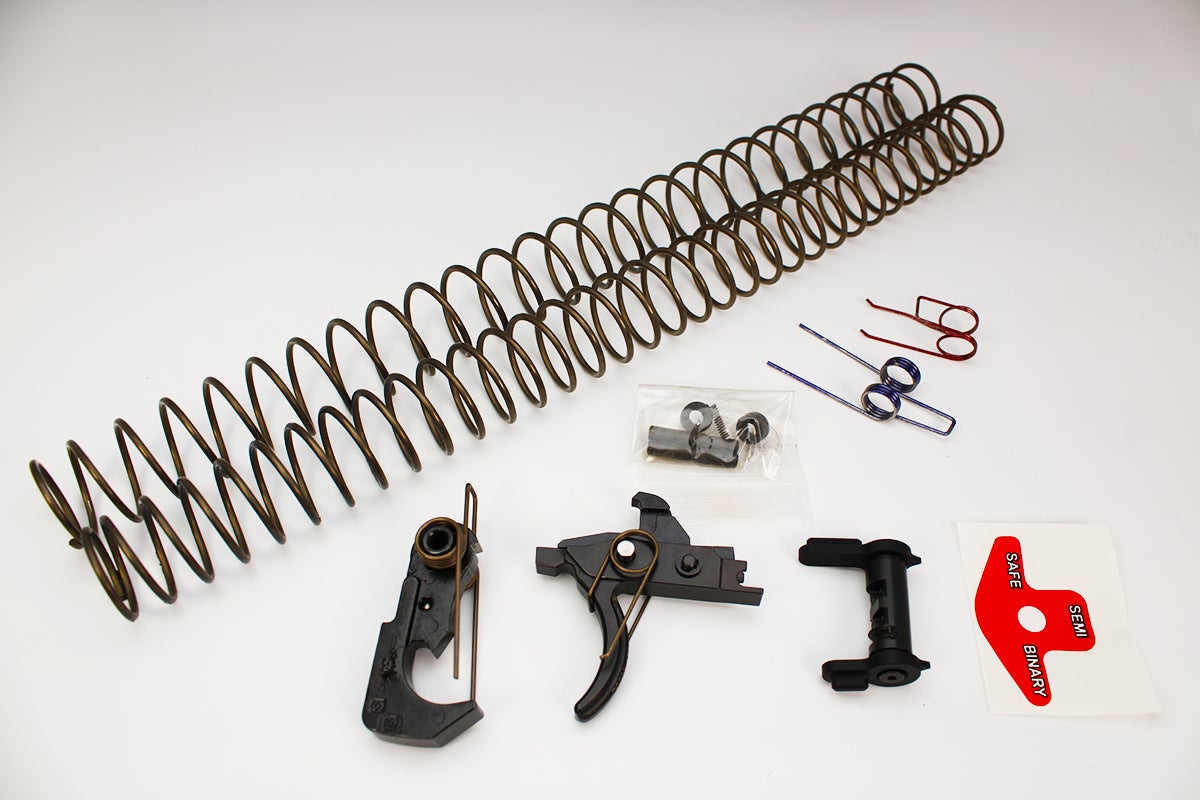

First, be certain your Franklin Armory Binary Trigger has all the mandatory components. It ought to include the next:
- (1) ambidextrous, two-piece security lever
- (1) pre-assembled set off w/ two disconnectors
- (1) customary hammer
- (2) hammer springs
- (2) set off springs
- (2) set off pin shoulders
- (2) hammer and set off pins
- (2) buffer springs (gentle, heavy)
- (1) nerdy security indicator sticker (non-obligatory)
The Franklin Binary Springs, Explained

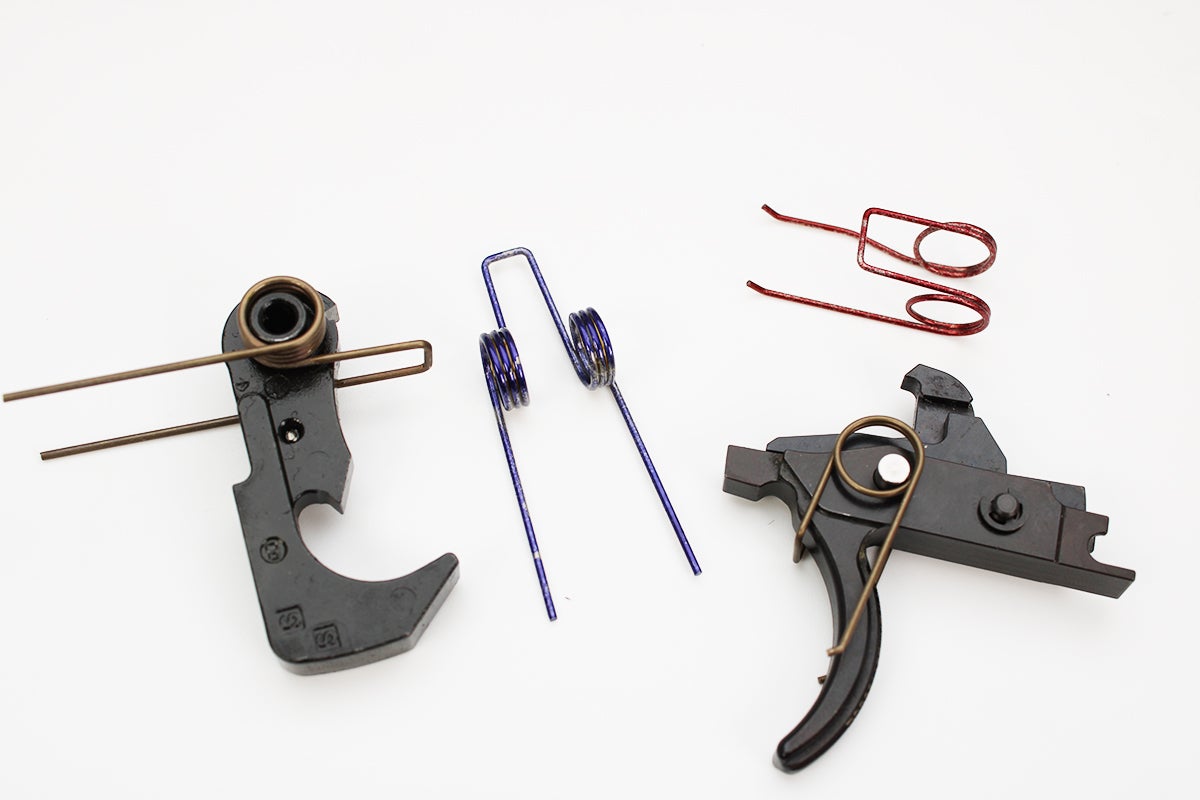

The coloured hammer and set off springs are lighter pull-weight choices. They cut back the drive required to tug the set off and drop the hammer. If you’re working brass with onerous primers, then it’s possible you’ll need to swap again to the unique (stiffer) hammer spring. The lighter set off spring can support in dashing up your binary perform, however I simply caught with each OEM springs to maintain issues dependable – and I needed a well-recognized pull weight.
The recoil/buffer springs are additionally designed to make sure dependable binary performance. If your bolt’s getting hung up or failing to cycle on binary, you’ll want to make use of the stiffer spring with extra coils. Otherwise, comparable logic applies: The lighter spring may help make your binary perform a bit sooner. Onto the set up.
Step 1: Remove Factory Hammer and Trigger

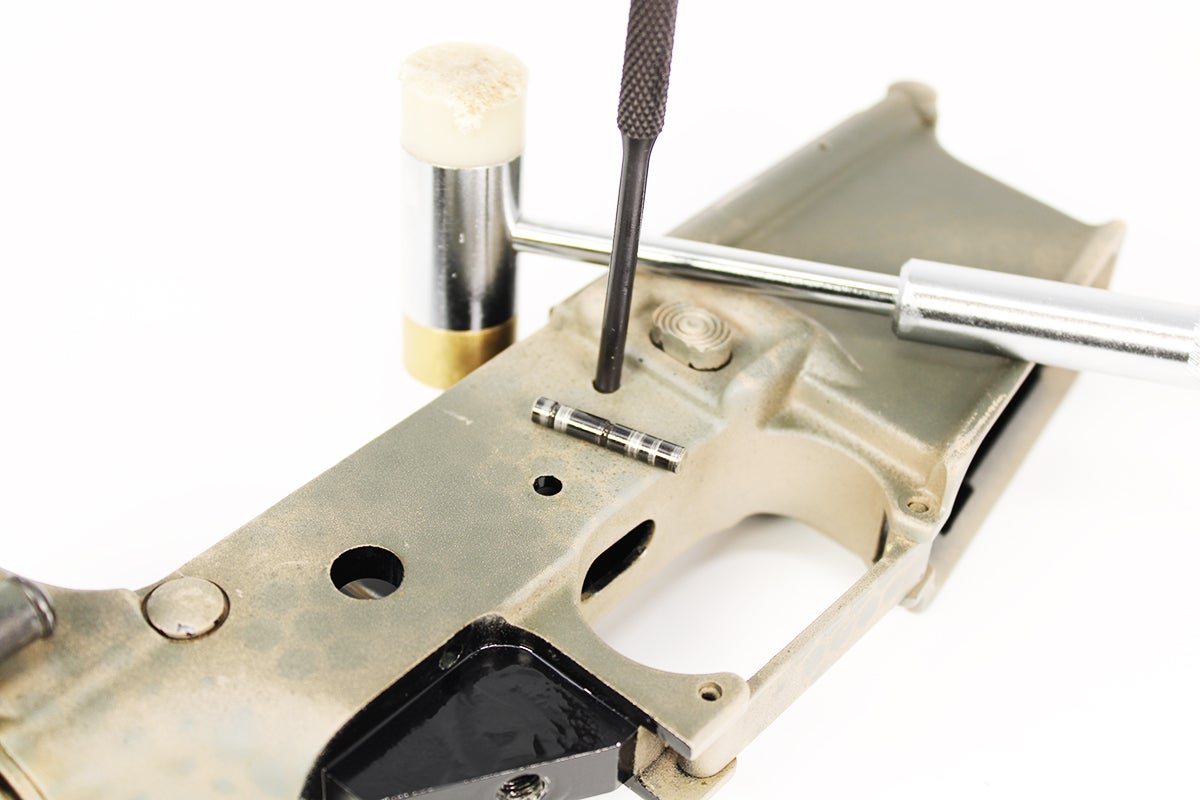

Use your punch and hammer to drive the manufacturing unit hammer pin out of the receiver. The hammer spring has some first rate stress, even when it’s not cocked, so maintain mild stress on the meeting as you take away it from the receiver. Repeat this course of for the set off pin and take away each items from the receiver.
Step 2: Remove Factory Grip & Safety

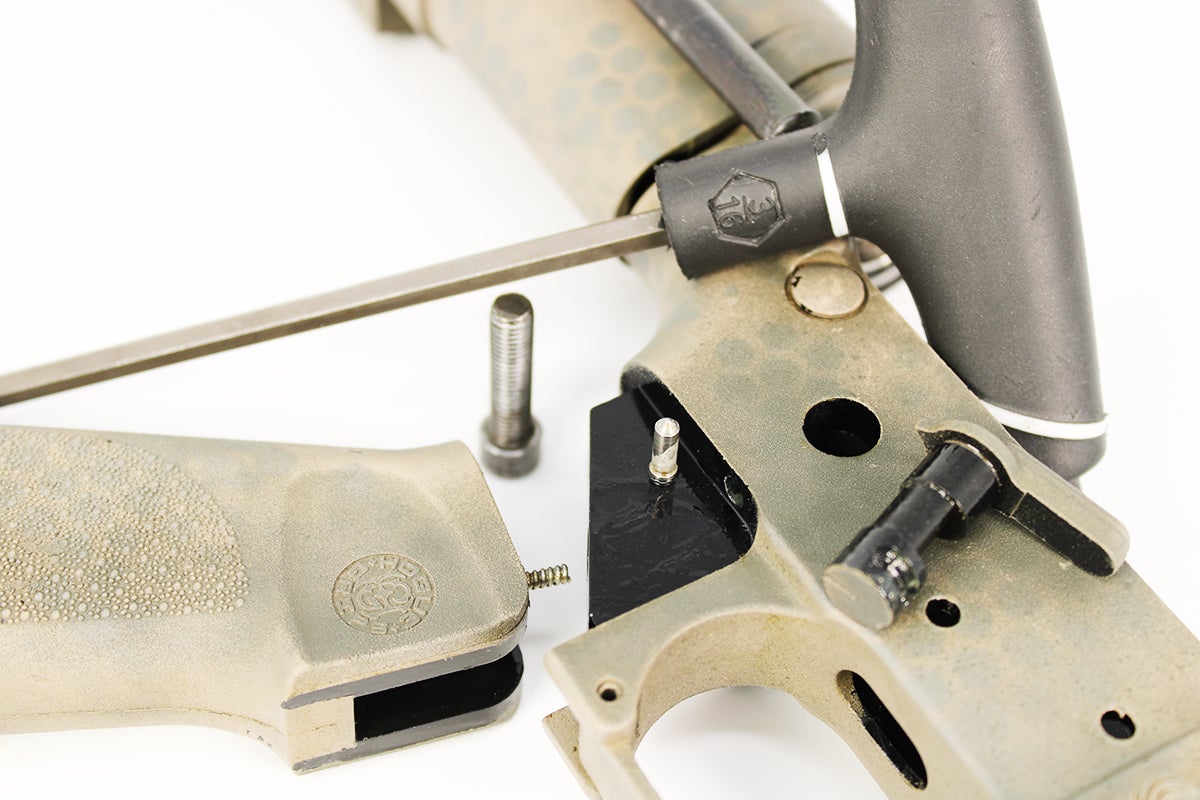

You’ll must first loosen and take away your manufacturing unit pistol grip. This will will let you take away the spring and small brass detent that holds the manufacturing unit security selector lever contained in the receiver’s cavity. The spring and detent are small, so make certain to not drop them into the void of your carpet or storage flooring.
Step 3: Install Shoulders on Binary Trigger

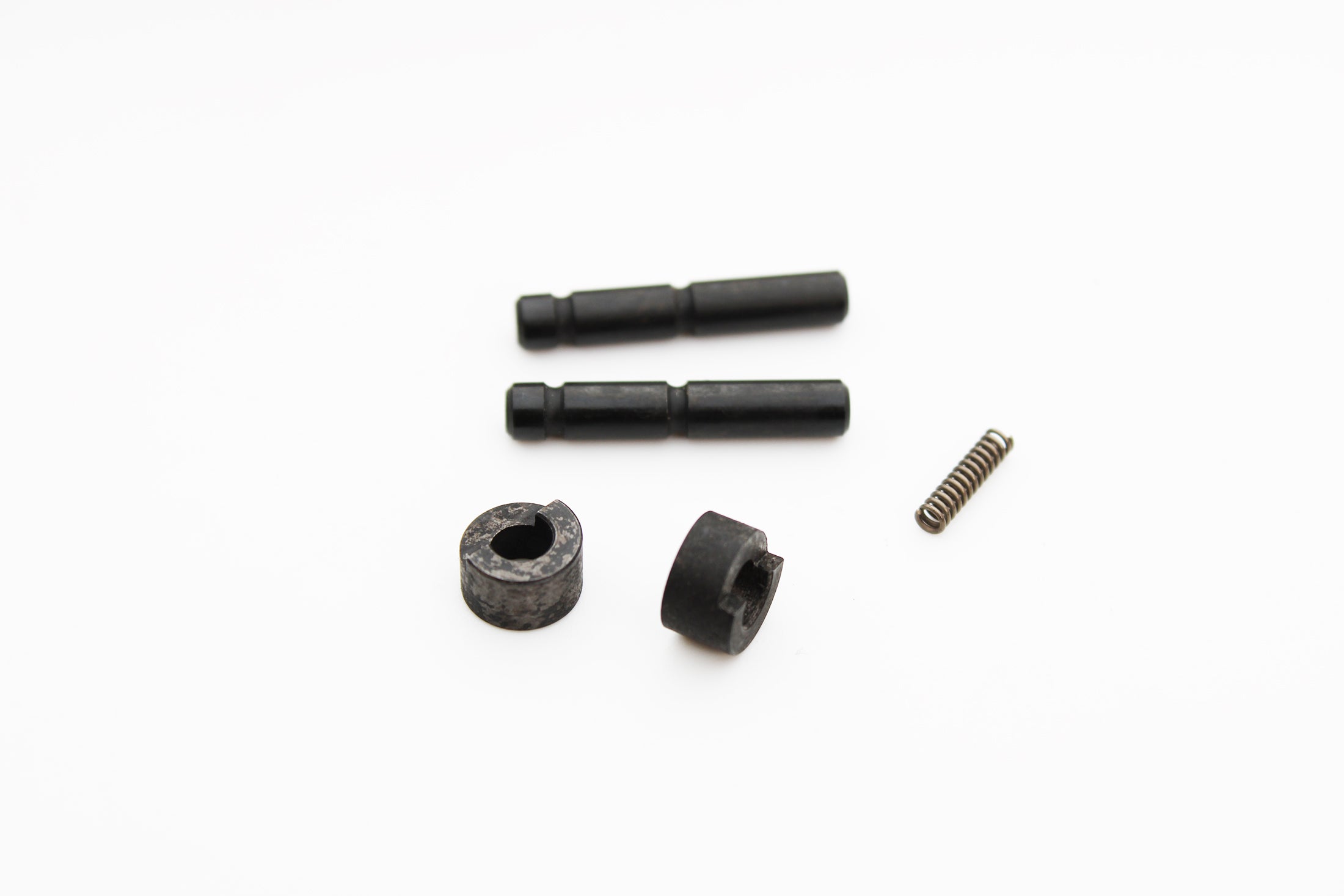

The small donuts that got here along with your set off are shoulders which can be meant to relaxation on both aspect of the set off pin. They assist make sure the binary set off stays within the absolute heart of the receiver cavity, so each disconnectors perform reliably.

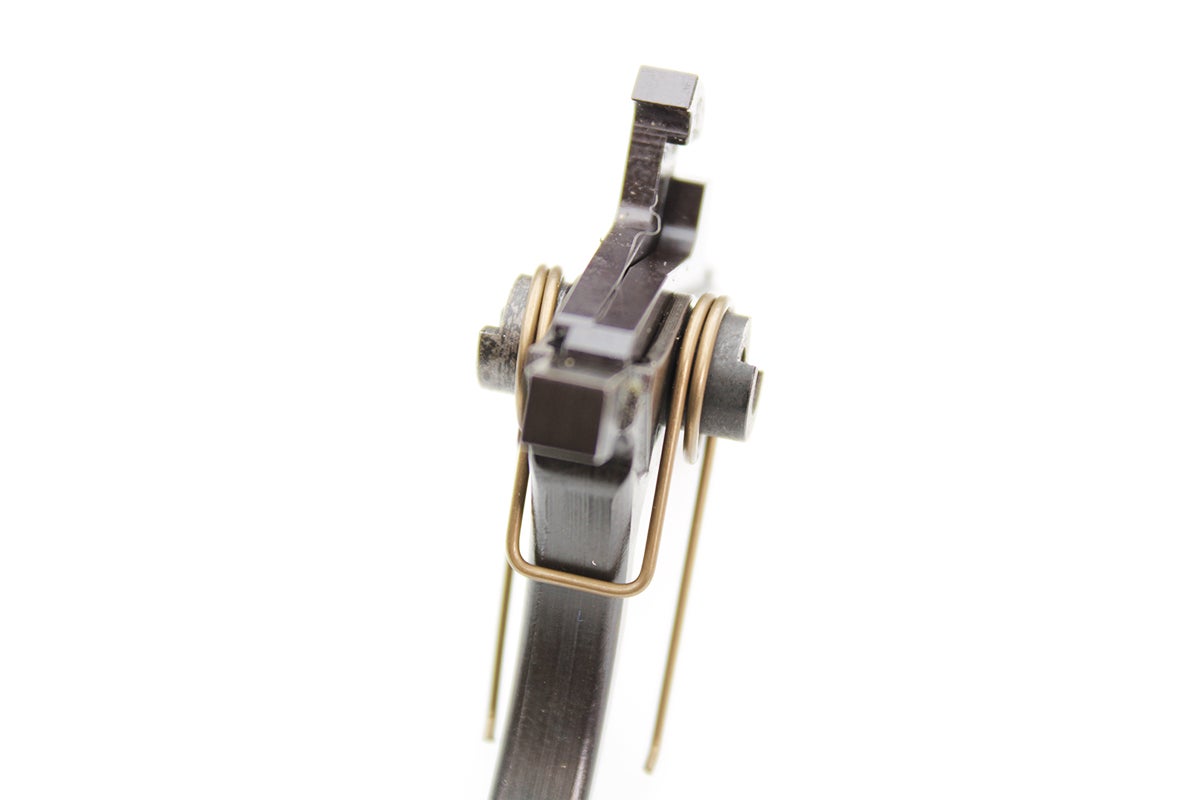

Insert one pin shoulder on both aspect of the short-term stainless set off pin that’s holding the meeting collectively. Ensure the flat cut-outs on both shoulder are dealing with upward; they supply a spot for the hammer spring ends to relaxation.

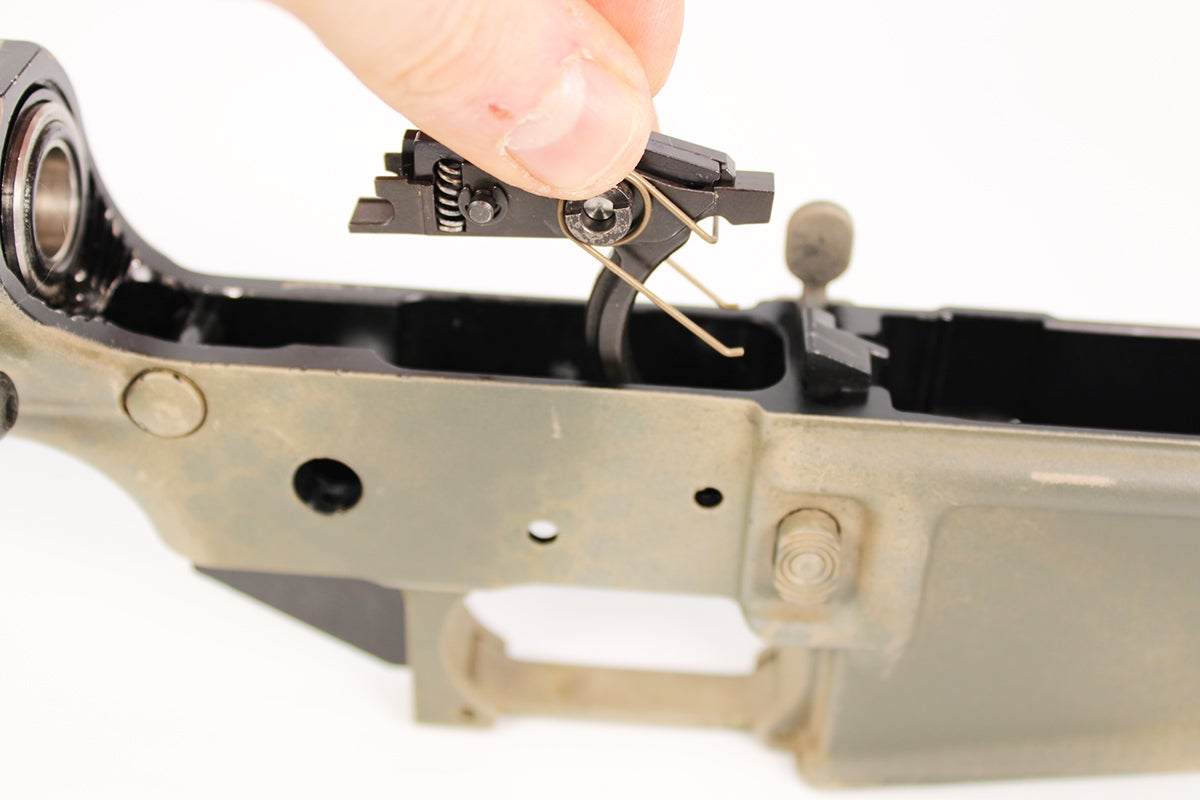

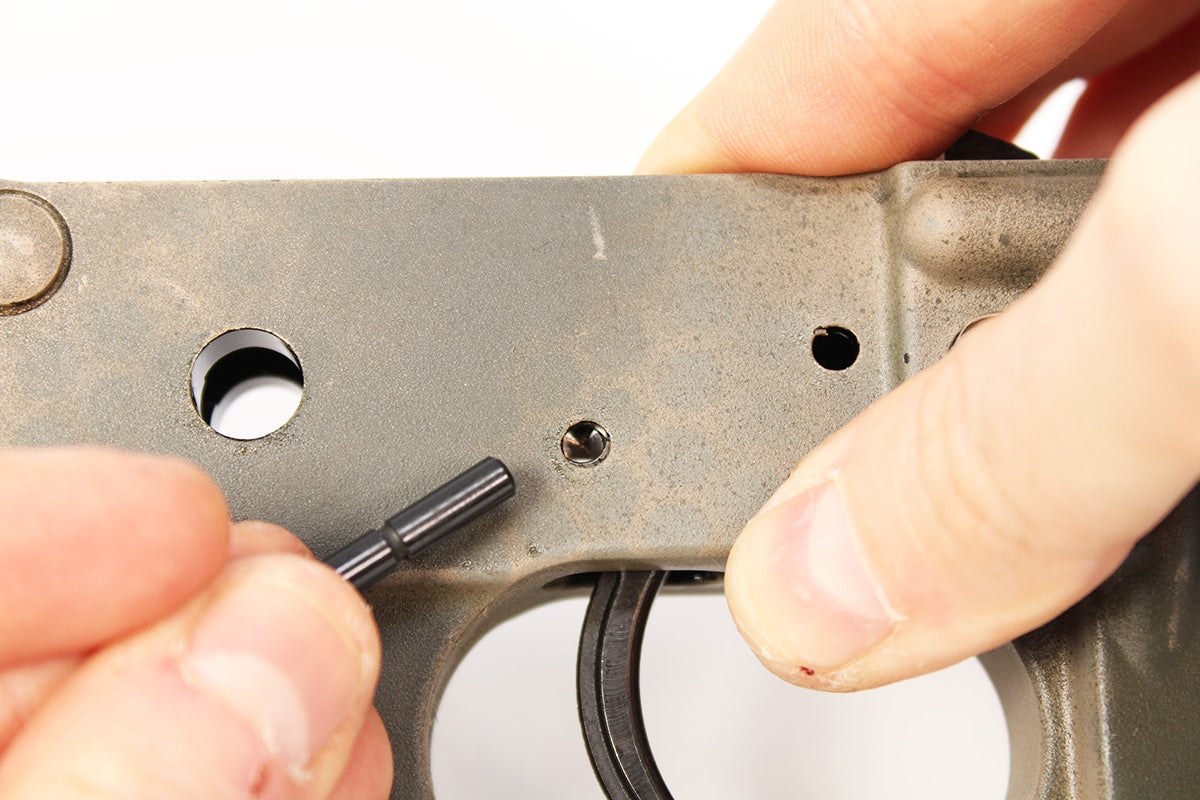

Next, you may drop the binary set off unit into your receiver’s cavity. Once the set off is resting within the receiver, align the set off pin holes.

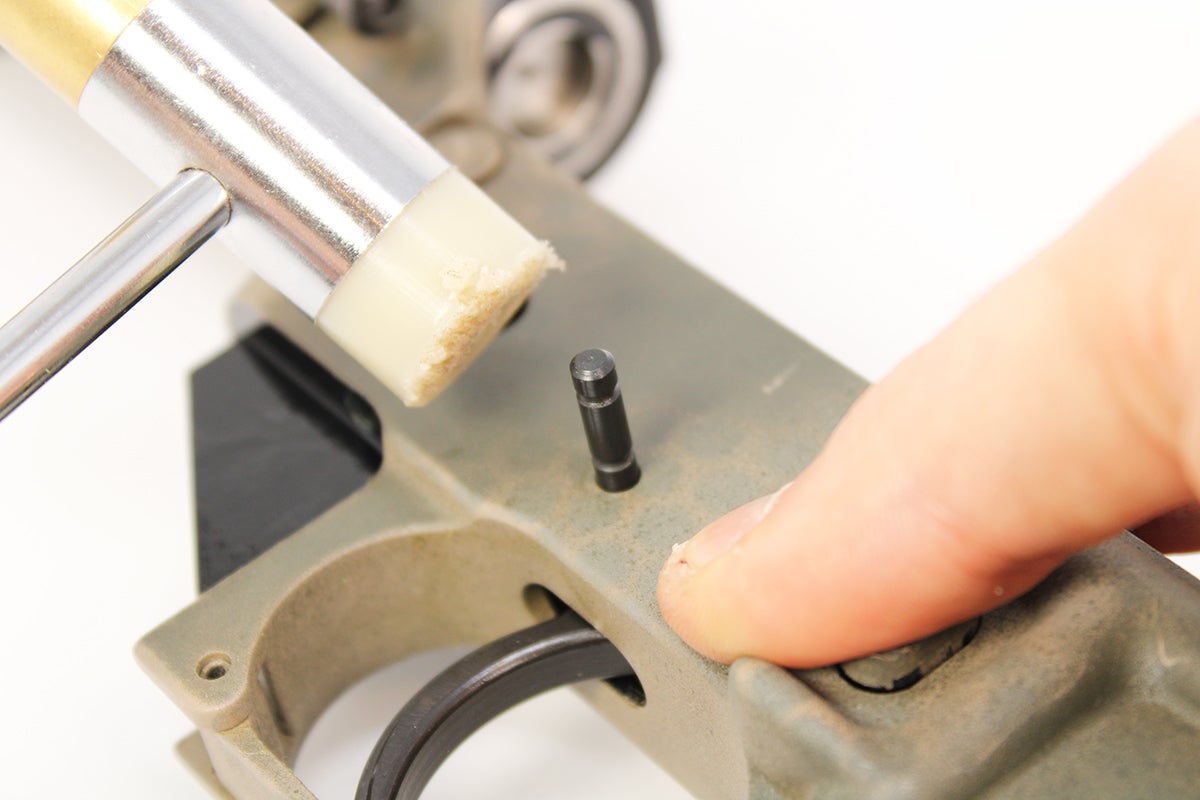

IMPORTANT: As you hammer the brand new set off pin into the receiver, it should drive the short-term stainless pin out the opposite aspect. It’s critically necessary you don’t enable the set off meeting to separate throughout this process. If you do, the disconnectors, that are beneath spring stress, will separate from the set off.
If this happens, you have to to take away the set off meeting and punctiliously put it again along with the short-term pin and shoulders earlier than making an attempt the set up a second time.

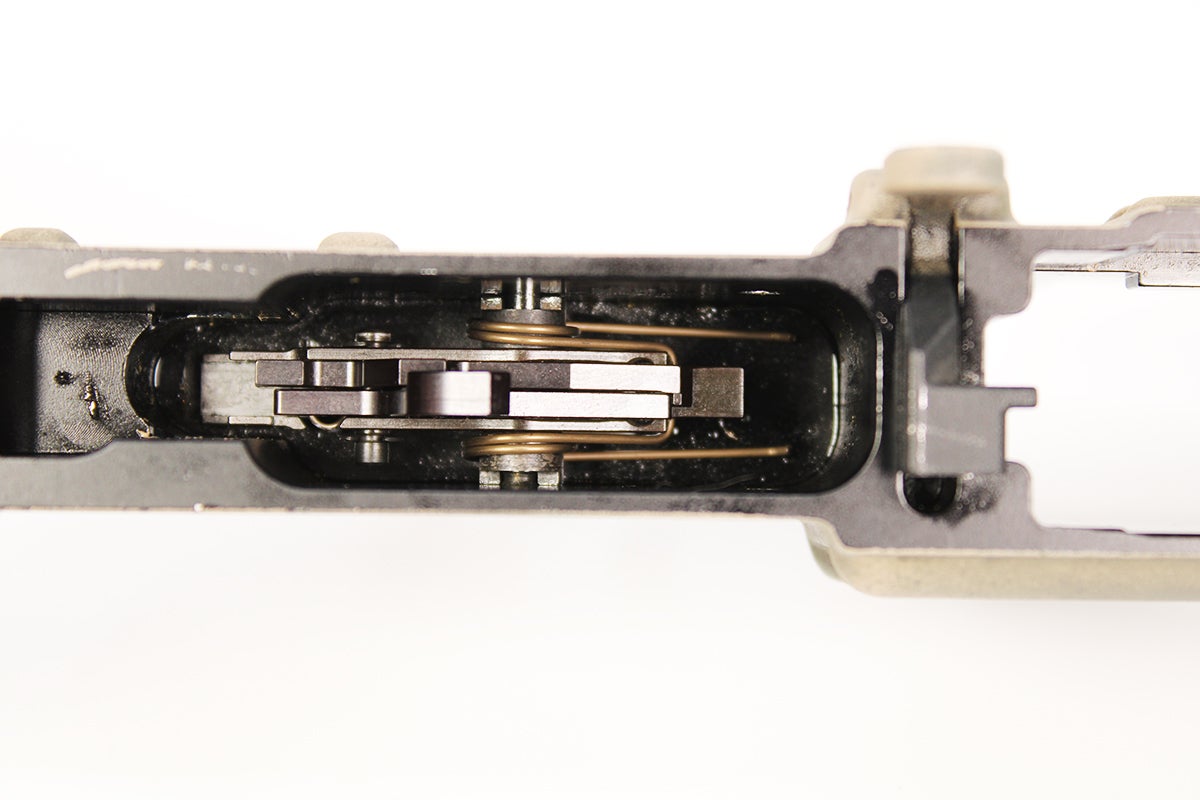

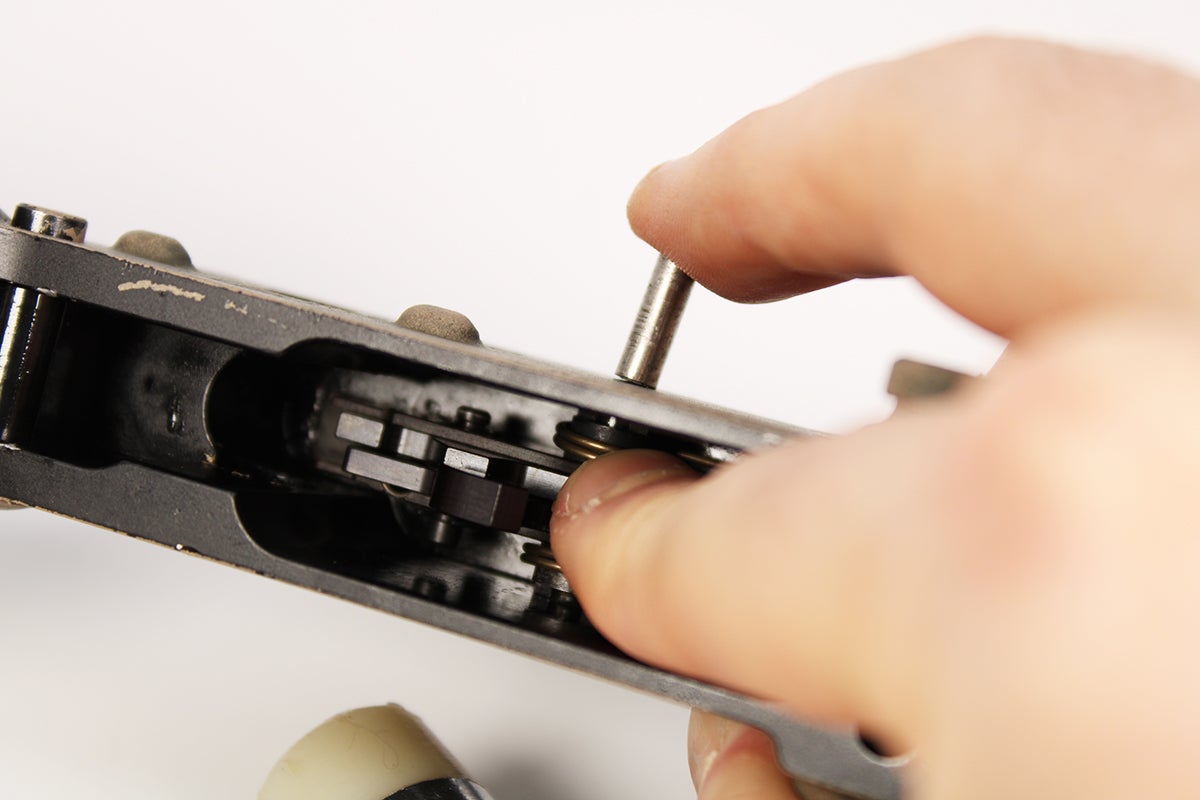

Once the set off pin is totally seated, the short-term pin will fall out the other aspect. Look down into the receiver, and confirm the set off meeting is heart with each shoulder’s cut-outs dealing with upward, as proven:
Step 4: Install New Hammer and Spring
With the set off seated, now you can set up the brand new hammer, spring, and hammer pin. The set up course of is the precise reverse of the manufacturing unit hammer’s removing.

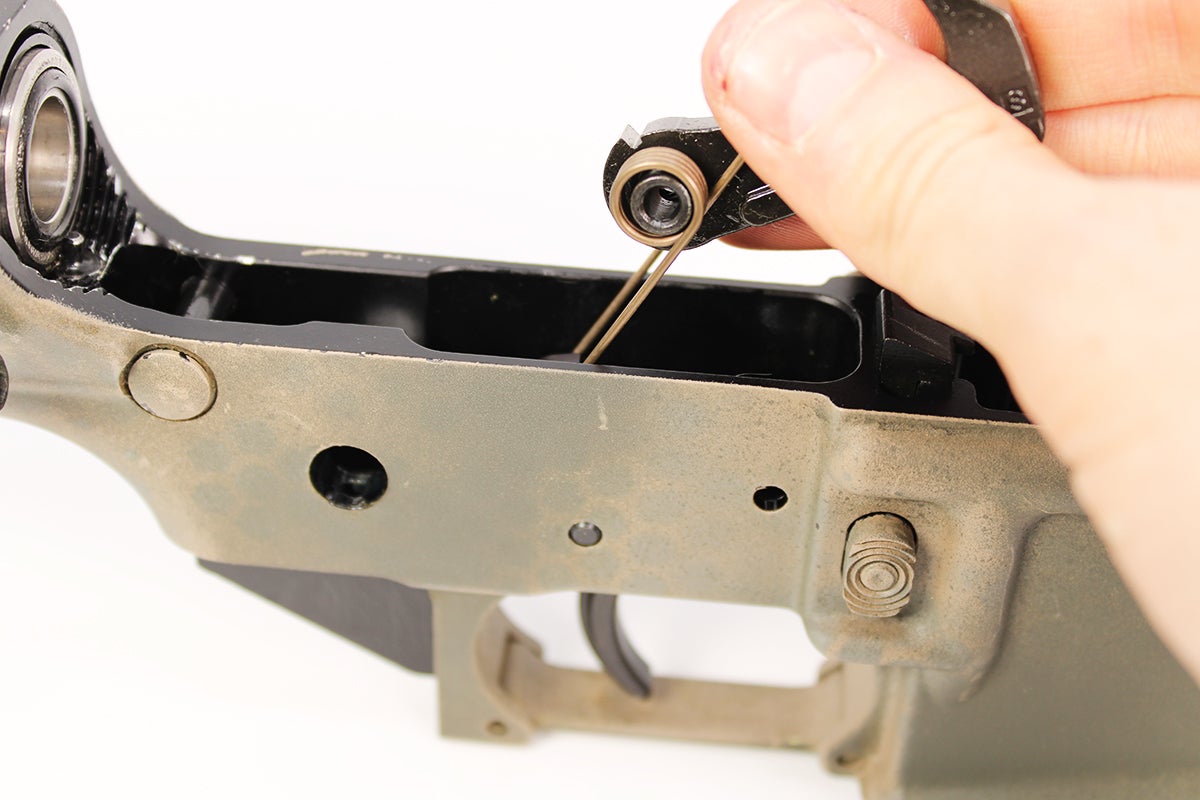

As you insert the hammer, make sure the leads of the hammer spring relaxation atop the set off pin’s shoulders. Hold the hammer in place to align the pin holes, and faucet the hammer pin into the receiver till it’s totally seated.

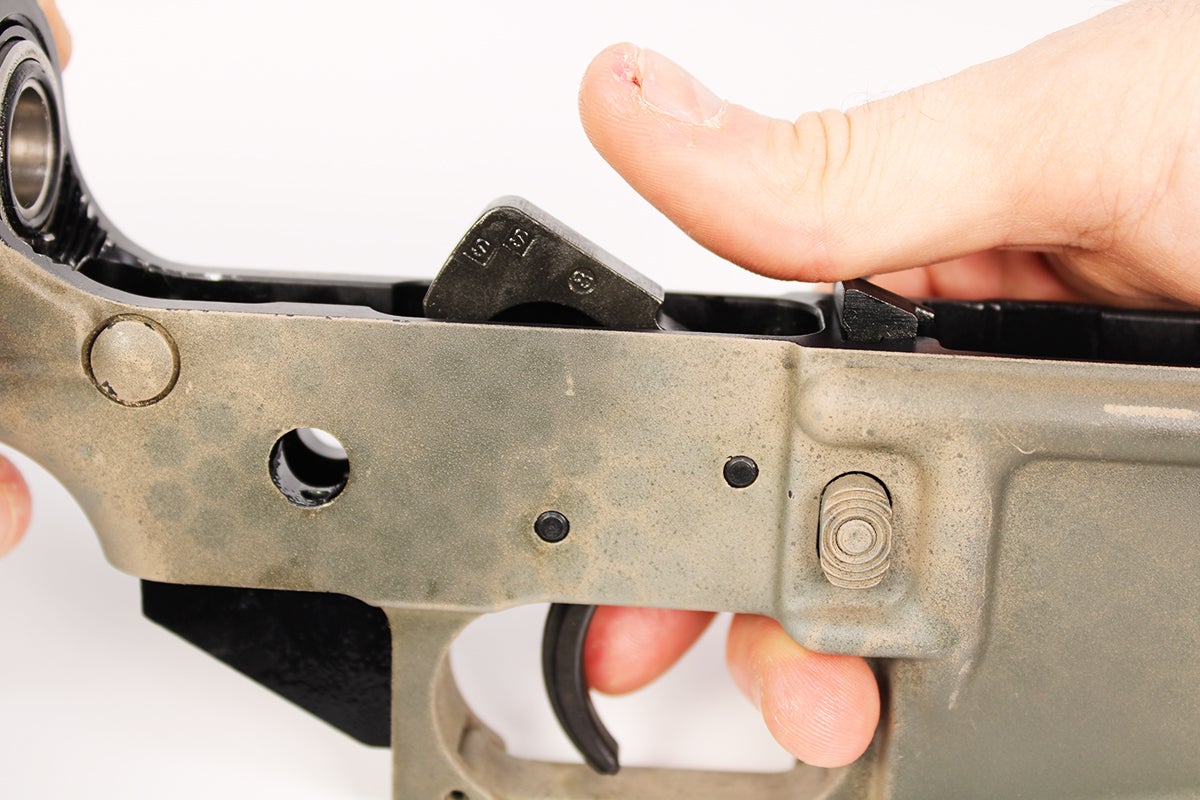

Once the hammer is put in, press down on the strike face to make sure the hammer cocks and stays locked to the set off meeting.
Step 5: Insert New Safety Lever

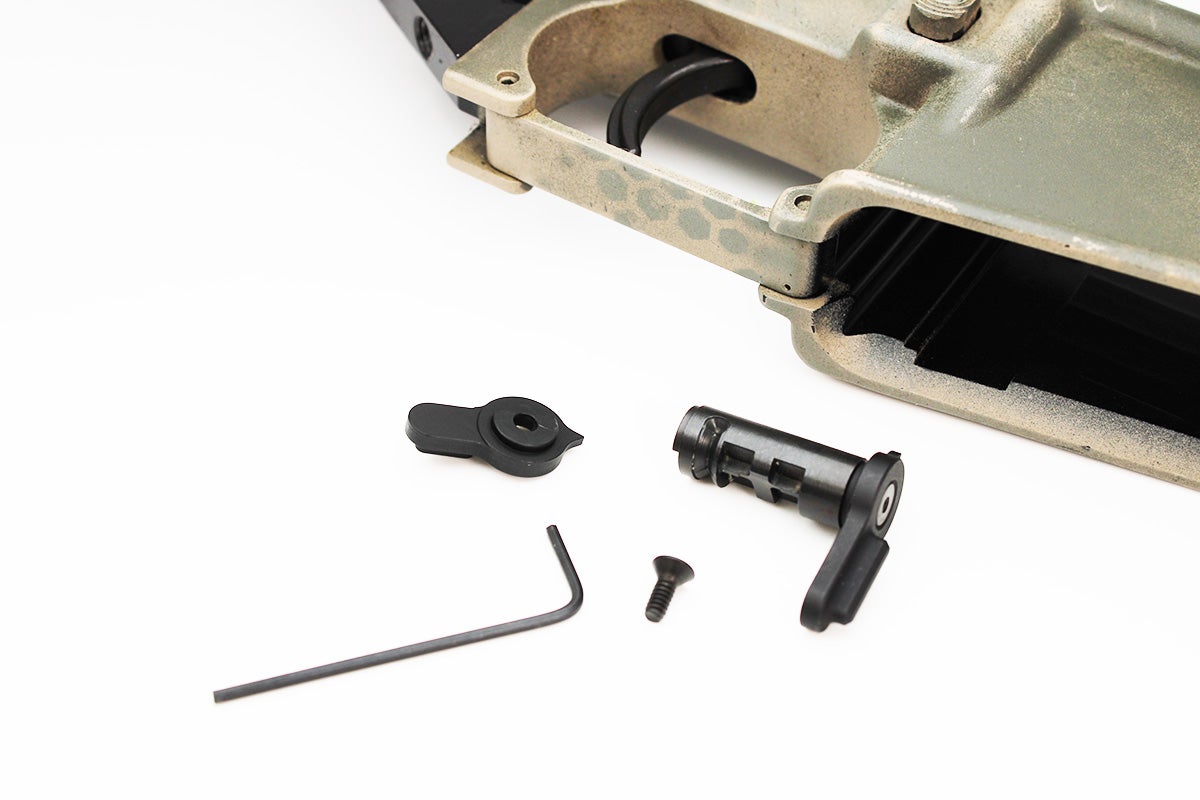

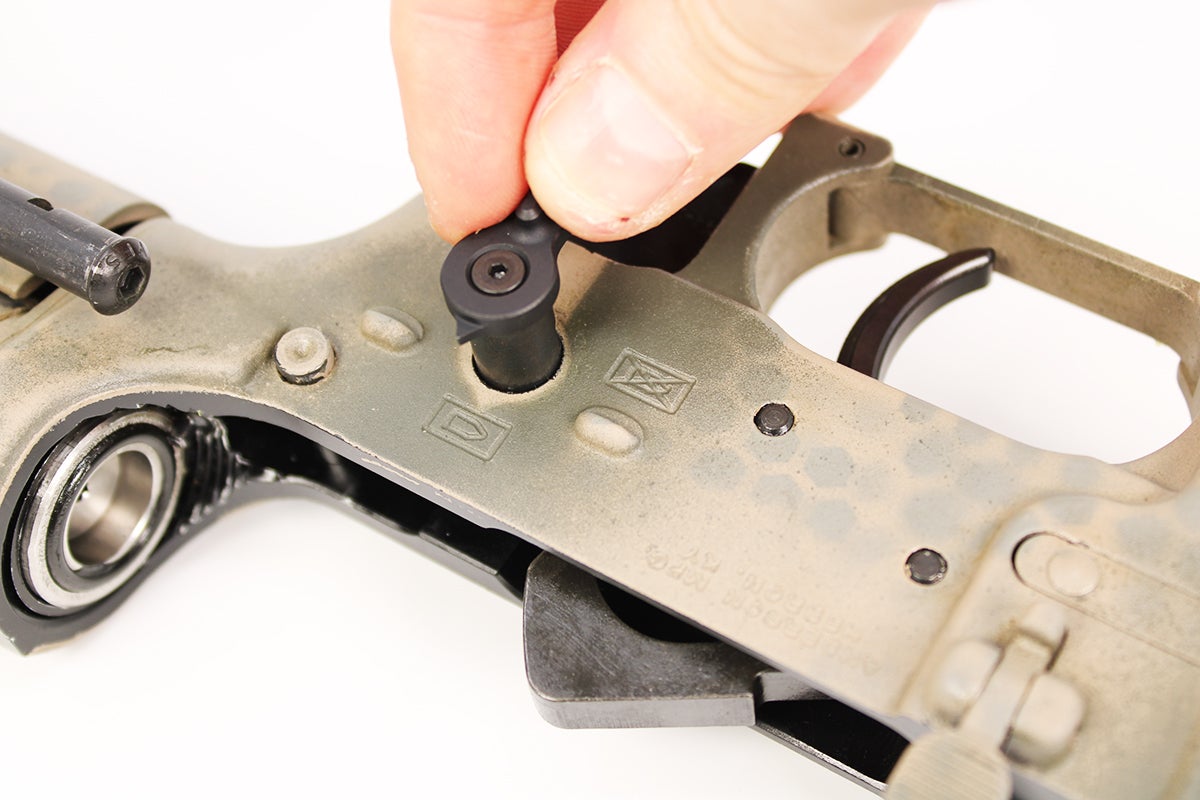

The security lever is ambidextrous, with a bigger major lever and secondary smaller lever on the other aspect. The smaller lever is secured to the protection pin by way of a small hex-head bolt. Start by inserting the first lever aspect and pin by the receiver’s left aspect.

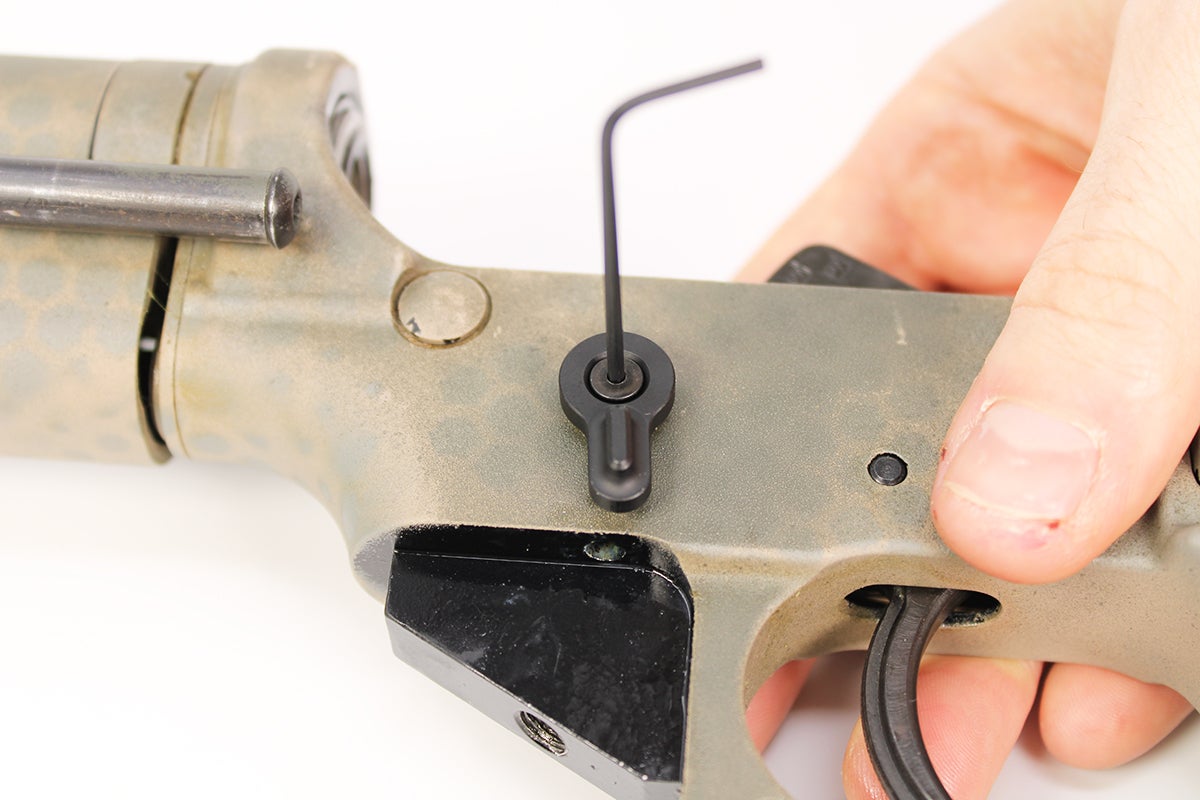

Once the protection pin is totally seated, you may thread the other lever onto the pin.
Take care to not cross-thread the bolt; it has small, fantastic threads.

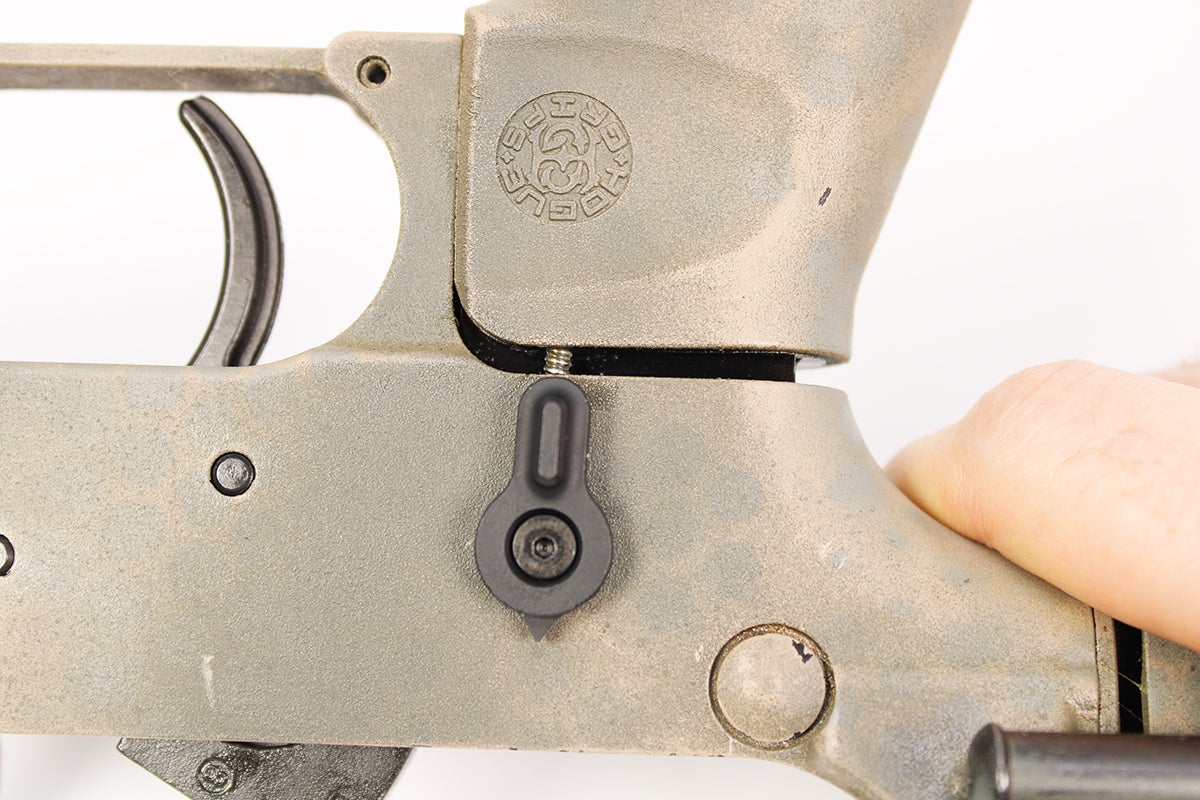

Next, reinsert the protection detent under the right-side security lever. Then reinstall the pistol grip, making certain the detent spring aligns with the detent’s gap. Your binary set off is put in!
Franklin Armory Binary Trigger: Perform Semi and Binary Function Checks
Before utilizing your receiver, you need to confirm the set off capabilities accurately within the SAFE, SEMI, and BINARY positions.

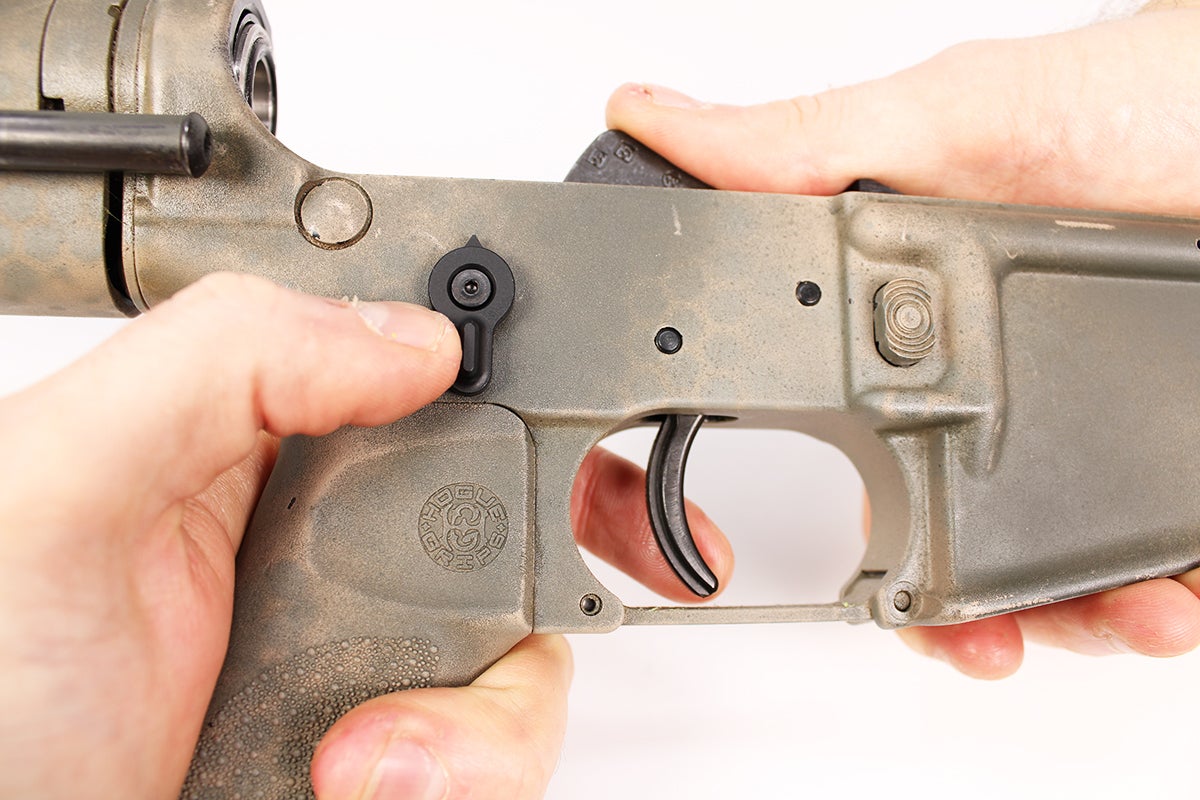

Safety perform examine: Cock the hammer, place the protection lever to the “SAFE” place, and try to tug the set off. The hammer shouldn’t fall, and the set off bow shouldn’t transfer.
Semi perform examine: Cock the hammer, and place the protection within the upright place. Pull the set off, and the hammer ought to launch. While conserving the set off squeezed, press the hammer again down till it’s captured by the disconnector. Once you hear it click on, the hammer ought to stay held. Release the set off, and you must hear a second click on. This is the disconnector handing the hammer off to the set off’s sear. The hammer ought to stay within the cocked place.
Binary perform examine. Switch the protection lever to the rearward place. Pull the set off, and the hammer ought to launch. While conserving the set off squeezed, press the hammer down till the disconnector captures it. Release the set off, and the hammer ought to fall a second time. If it does, binary performance is working.
Cancel binary perform examine. Switch the protection lever to the rearward place. Pull the set off, and the hammer ought to launch. While conserving the set off squeezed, press the hammer down till the disconnector captures it. While nonetheless squeezing the set off, rotate the protection selector lever to the upright (SEMI) place. Then launch the set off. The hammer ought to not fall, however ought to as a substitute stay cocked. If it does, binary cancellation is functioning accurately.
If your set off passes all capabilities checks, then congratulations! You’re able to hit the vary and have some rapid-fire enjoyable.
